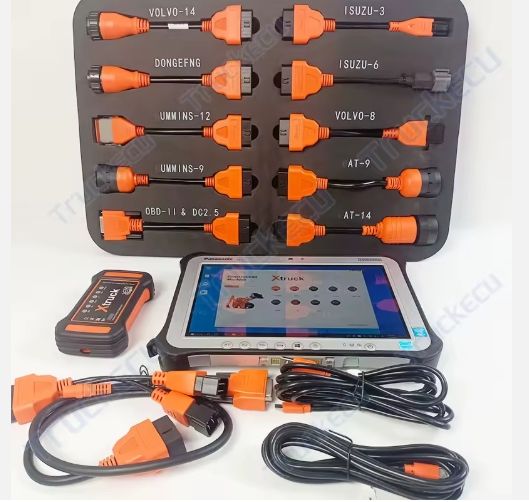

XTRUCK Y009 Diagnostic Tool for Construction Machinery

XTRUCK Y009 Diagnostic Tool for Construction Machinery

For :
Cummins

Hino

Izuzu

Volvo

Hitachi

CAT

Calterm

1. What is the XTRUCK Y009 Diagnostic Tool?

The XTRUCK Y009 HDD is a multi-brand, comprehensive diesel engine diagnostic tool designed for trucks, heavy machinery, excavators, generators, and other equipment. It supports multiple international brands, including CUMMINS, ISUZU, HINO, VOLVO, RENAULT/UD/MACK, CAT, HITACHI, and SCANIA, meeting the diagnostic needs of various devices.

1.1 Supported Device Types

• Trucks
• Heavy Machinery (e.g., excavators, wheel loaders, graders, etc.)
• Generators

1.2 Key Features

• Trouble Code Reading & Clearing
• Data Analysis
• ECM/ECU Programming
• Throttle Calibration
• Time & Flow Calibration
• Cylinder Testing
• Injector QR Coding
• GPS Settings

---

2. Supported Brands and Models

2.1 VOLVO/RENAULT/UD/MACK

Supports devices using SAE J1939 or 1708 communication protocols, including:

AC Compo4 F10 F12 F16 FE FH FH12 FH16 FH565 FL FL10 FL12 FL6 FL7 FM FM10 FM12 FM9 FM7 Nh12 NH525 NH565 NL10 Nl12 VAh VHD Vm VN VT WC WG WI WX

For Volvo busses:

B10B B10L B10M B10R B11R B12 B12B B12M B12R B13R B58 B5LH B5RH B6 B6R B7FB B7L B7R B9L B9R B9S B9TL BXRC COMP12 PREVH PREVX OLYMPIAN SUPEROLY

Construction Equipment Wheel Loader:

L110E L110F L110G L120E L120F L120G L150E L150F L150G L180E L180F L180G L220E L220F L220G L250G L330E L350F L45F-TP L45F-TPS L50F-TP L50F-TPS L50G-TP L50G-TPS L60E L60F L60G L70E L70F L70G L90E L90F L90G

Aryiculated Hauler :

A25D A25E A25F A30D A30E A30F A35D A35E A35F A40D A40E A40F T450D

Excavator: EC135B EC140B EC140C EC140D EC160B EC160C EC160D EC180B EC180C EC180D EC200B EC210B EC210C EC235D EC240B EC240C EC250D EC290B EC290C EC300D EC330B EC330C EC340D EC360B EC360C EC380D EC460B EC460C EC480D EC700B EC700C ECR145C ECR235C ECR235D ECR305C EW140B EW140C EW140D EW145B EW160B EW160C EW160D EW180B EW180C EW180D EW200B EW210C EW210D EW230C FB2800C FBR2800C FC2121C FC2421C FC2924C FC3329C PL3005D PL4608 PL4808D PL7015

Grader:

G710B G720B G726B G730B G740B G746B G780B G930 G930B G940 G940B G946 G946B G960 G960B G970 G976 G990 Skidsteer

Loader :

MC110B MC60B MC70B MC80B MC90B Compact Excavator: EC55C EC80D ECR88 EW60C Paver : ABG7820B ABG8820B P7820C L882C

Other:

CARETRAC

2.2 CUMMINS

Supports all CUMMINS engines, featuring the latest Insite Pro software with functions including:

• Data Analysis
• Trouble Code Reading & Clearing
• ECM/ECU Programming

2.3 ISUZU

Supports all ISUZU engines, equipped with G-IDSS & E-IDSS software, offering:

• Data Analysis
• Trouble Code Reading & Clearing
• Cylinder Testing
• Injector QR Coding

2.4 CAT

Supports all CAT devices, featuring ET & SIS software with functions such as:

• Hydraulic System Diagnostics
• Electronic Control System Diagnostics
• EFI Engine System Diagnostics
• Data Analysis

2.5 HITACHI

Supports all HITACHI devices, equipped with MPDr software, offering:

• Hydraulic System Diagnostics
• Electronic Control System Diagnostics
• EFI Engine System Diagnostics
• GPS Settings

2.6 SCANIA

Supports all SCANIA engines, featuring SDP3 software with functions including:

• Data Analysis
• Trouble Code Reading & Clearing
• ECM/ECU Programming

2.7 HINO

Supports all HINO engines, equipped with HINO DX2 software, offering:

• Data Analysis
• Trouble Code Reading & Clearing
• Injector QR Coding

---

3. Features and Applications

3.1 Key Features

• Multi-Brand Support: No need for multiple devices—covers diagnostic needs for multiple brands.
• Comprehensive Diagnostics: Supports hydraulic systems, electronic control systems, and EFI engine systems.
• Professional Functions: Offers throttle calibration, cylinder testing, and injector QR coding.

3.2 Application Scenarios

• Truck Maintenance: Suitable for daily maintenance and troubleshooting of VOLVO, SCANIA, and HINO trucks.
• Heavy Machinery Maintenance: Ideal for diagnosing and repairing CAT, HITACHI, and VOLVO excavators and wheel loaders.
• Generator Maintenance: Supports fault code reading and clearing for multi-brand generators.

---

4. Technical Support and Software

The XTRUCK Y009 HDD comes pre-installed with various professional diagnostic software, including:

• Insite Pro: For in-depth diagnostics and programming of CUMMINS devices.
• ET & SIS: For diagnosing electronic control and hydraulic systems in CAT devices.
• SDP3: For data analysis and troubleshooting in SCANIA devices.
• MPDr: For hydraulic system diagnostics and GPS settings in HITACHI devices.

---

5. Why Choose the XTRUCK Y009?

• Multi-Functionality: Supports multi-brand and multi-system diagnostics to meet diverse equipment needs.
• Professionalism: Equipped with professional diagnostic software for precise fault detection and solutions.
• Efficiency: Quickly reads and clears fault codes, performs programming, and saves repair time.

WARRANY : 1 year

Licence expires : 25/03/2034
