Maxidiag MD906 Pro Scanner

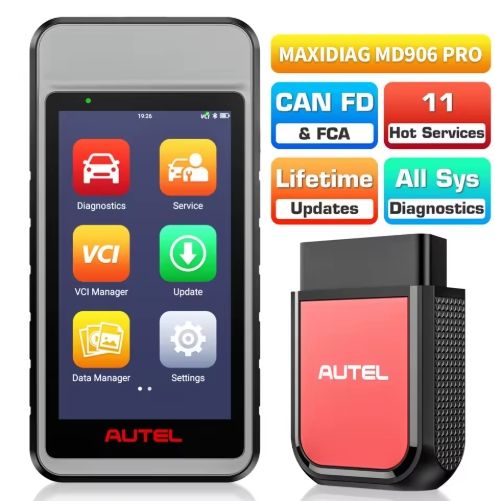

Autel MaxiDiag MD906 PRO

Building on the strengths of its predecessor, Autel's latest handheld DIY diagnostic tool, the Autel MaxiDiag MD906 PRO, delivers a major upgrade in both hardware and software. Now operating on a more flexible Android platform instead of a traditional embedded system, this next-generation device offers expanded diagnostic capabilities, smoother user interaction, and simplified updates—significantly elevating the overall DIY experience.

The Autel MD906 PRO equips DIY enthusiasts with professional-level tools for routine maintenance, essential diagnostics, custom tuning, and personalized vehicle configuration.

Autel MaxiDiag MD906 PRO Features:

Enhanced All System Diagnostics and Service Functions

Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems

Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data

Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F

Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

Outstanding Hardware, Faster Operation

5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface

5,000mAh battery, deliver long battery-life

Bluetooth connectivity of VCI, more convenient in handheld operation scenarios

Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector

Support CAN FD communication protocol, compatible with advanced automotive systems

Access automakers security gateways, such as FCA, SFD, Nissan, etc.

Free lifetime OTA software updates, cost-effective handheld solution

Autel MaxiDiag MD906 PRO Highlights:

Powerful Hardware:

Features a 5.5-inch display, 64GB of storage, and runs on an Android platform—offering a smooth, intuitive user experience.

Wide and Up-to-Date Vehicle Coverage:

Supports access to all modules across all systems, including vehicles from the current model year.

Equipped with CAN FD protocol compatibility for working with advanced automotive networks.

Comprehensive Diagnostics & Service Functions:

Enhanced Mode 6 diagnostics

Full system AutoScan for DTC detection

Reads and clears codes

Displays live data and freeze frame information

Includes 11 essential service functions

Supports all OBDII protocols and all 10 OBDII test modes, including I/M Readiness and emissions testing.

Autel MaxiDiag MD906 PRO Specifications:

Hardware Specifications:

5.5-inch Handheld touchscreen interface

Integrated Bluetooth communication, wireless connection of VCI

Software Capabilities:

All System Diagnostic Scanning + Maintenance Services

Expands upon MD808PRO's foundation with 5 additional service features

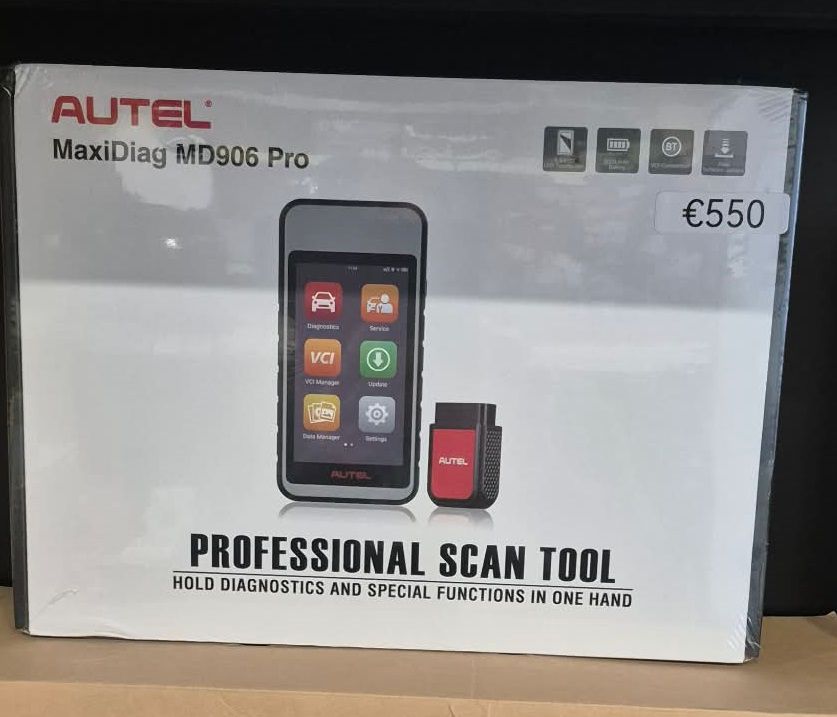

Autel MaxiDiag MD906 PRO Package List:

1pc x Autel MaxiDiag MD906 PRO

1pc x V150 Lite VCI
