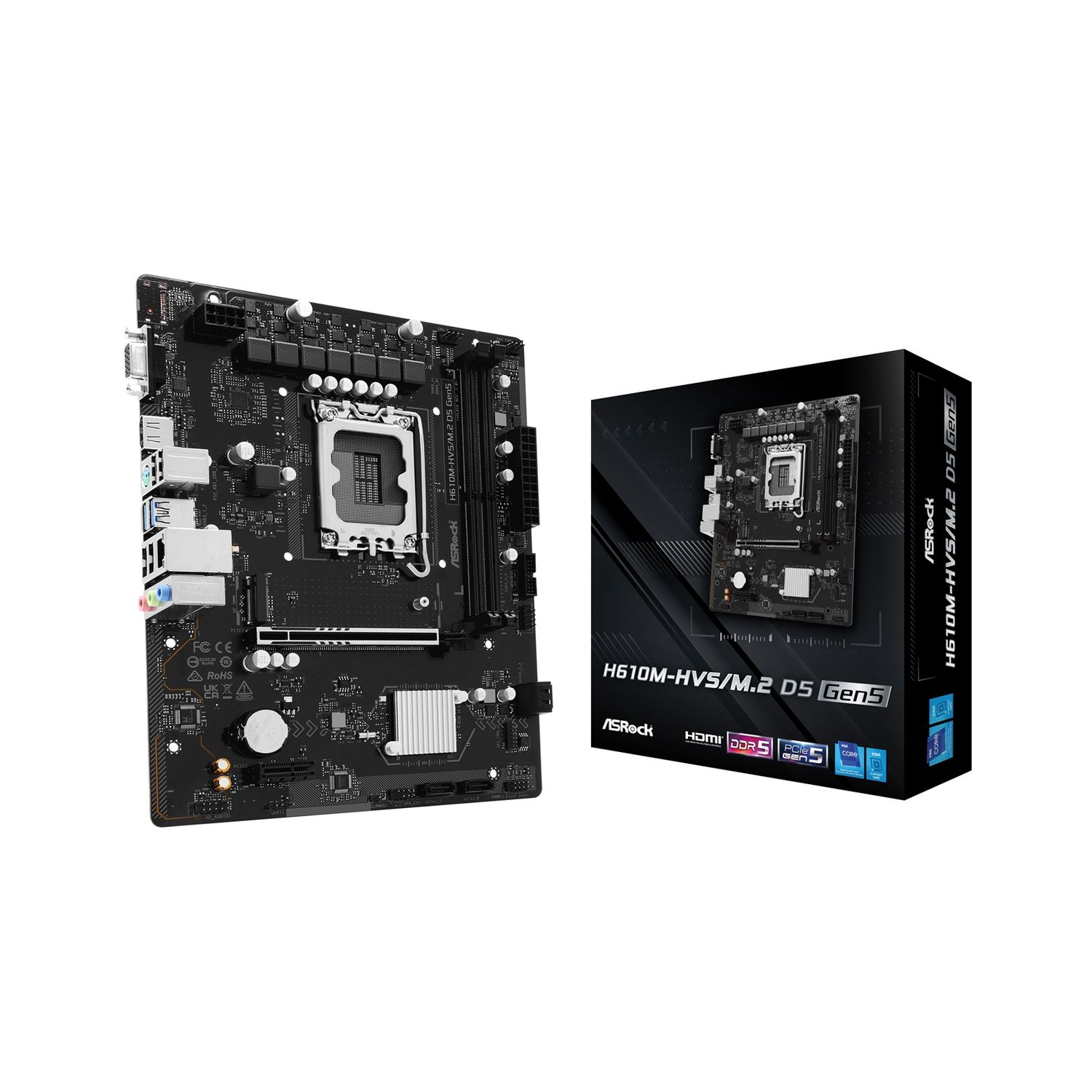

ASRock H610M Motherboard

H610M-HVS/M.2 D5 GEN5

Unique Feature

Superb Productivity

- PCIe Gen5 (Graphics)

- Dual Channel DDR5

Rock-Solid Durability

- 6+1+1 Power Phase

- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

EZ Update

- ASRock Auto Driver Installer

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

- Intel® H610

Memory

- Dual Channel DDR5 Memory Technology

- 2 x DDR5 DIMM Slots

- 14th and 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*

- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*

- Max. capacity of system memory: 128GB*

- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s

- Realtek 8111H

Wireless LAN

N/A

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x1 Slot (PCIE2)

Storage

Chipset:

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

RAID

N/A

USB

Chipset:

- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)

- 6 x USB 2.0 (4 Rear, 2 Front)

Connector

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x HDMI Port

- 2 x USB 3.2 Gen1 Ports

- 4 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Accessories

- 1 x I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm

- Solid Capacitor design

OS

- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
