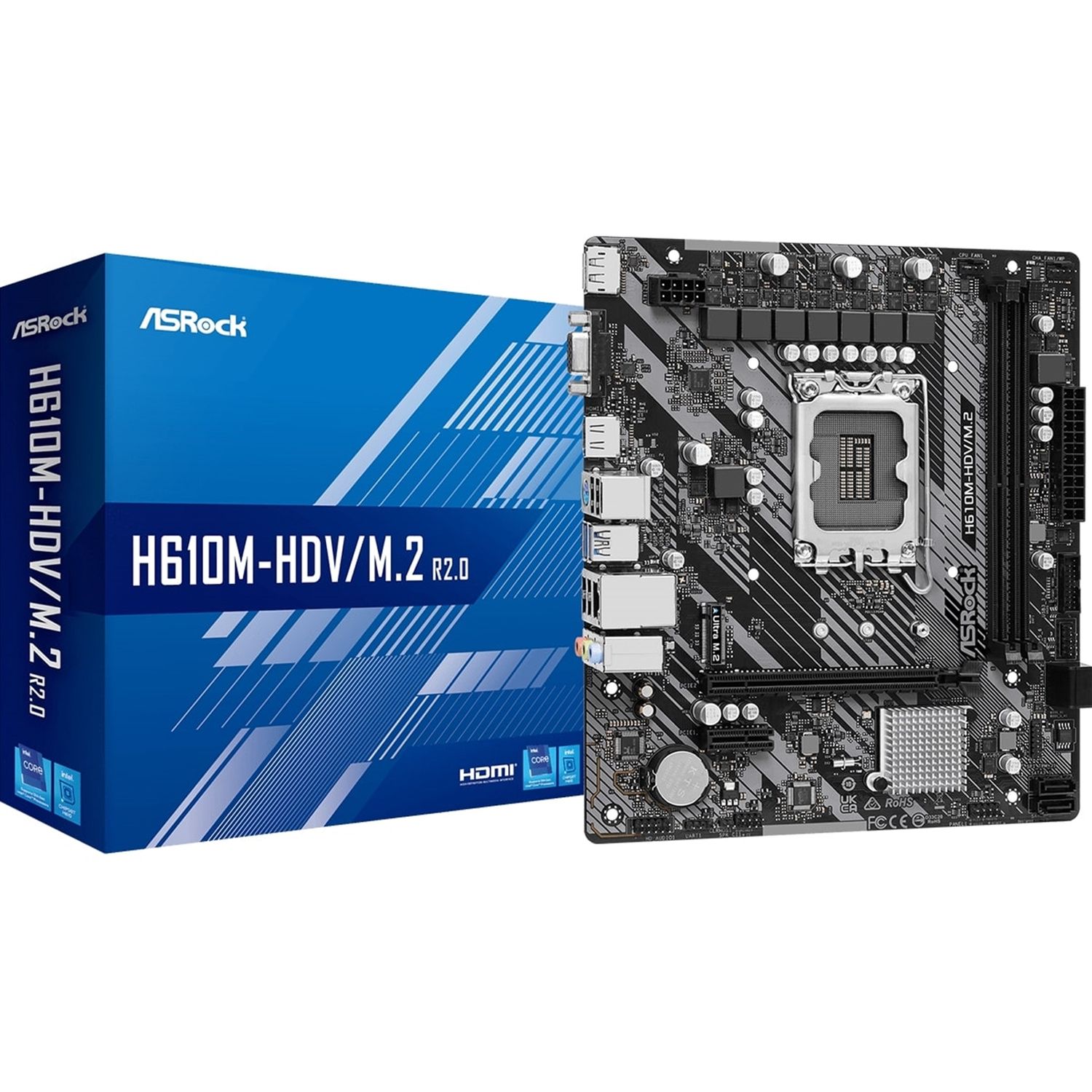

ASRock H610M-HDV/M.2 Motherboard

ASRock H610M-HDV/M.2 Motherboard, Intel Socket 1700, 12th Gen, DDR4, Micro ATX, 6 Phase Power Design, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x PCIe Gen3 x4, 4x USB 3.2 Gen1, Intel Gigabit LAN, HDMI, DisplayPort, VGA

Unique Feature

ASRock Super Alloy

- Premium Power Choke

- Sapphire Black PCB

- High Density Glass Fabric PCB

ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

Supports 12th Gen Intel Core Processors (LGA1700)

Digi Power design

6 Power Phase design

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Chipset

Intel H610

Memory

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

Supports DDR4 non-ECC, un-buffered memory up to 3200

Supports ECC UDIMM memory modules (operate in non-ECC mode)

Max. capacity of system memory: 64GB

Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Graphics

Intel Xe Graphics Architecture (Gen 12)

Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio

7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)

Supports Surge Protection

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel I219V

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports UEFI PXE

Slots

1 x PCIe Gen4x16 Slot

2 x PCIe Gen3x1 Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

4 x SATA3 6.0 Gb/s Connectors

1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

Connector

1 x COM Port Header

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O

2 x Antenna Mounting Points

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x HDMI Port

1 x DisplayPort 1.4

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

2 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock XFast LAN

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Instant Flash

- ASRock Internet Flash

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

Quick Installation Guide, Support CD, I/O Shield

2 x SATA Data Cables

2 x Screws for M.2 Sockets

Hardware Monitor

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

CASE OPEN detection

Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V

Form Factor

Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

Solid Capacitor design
