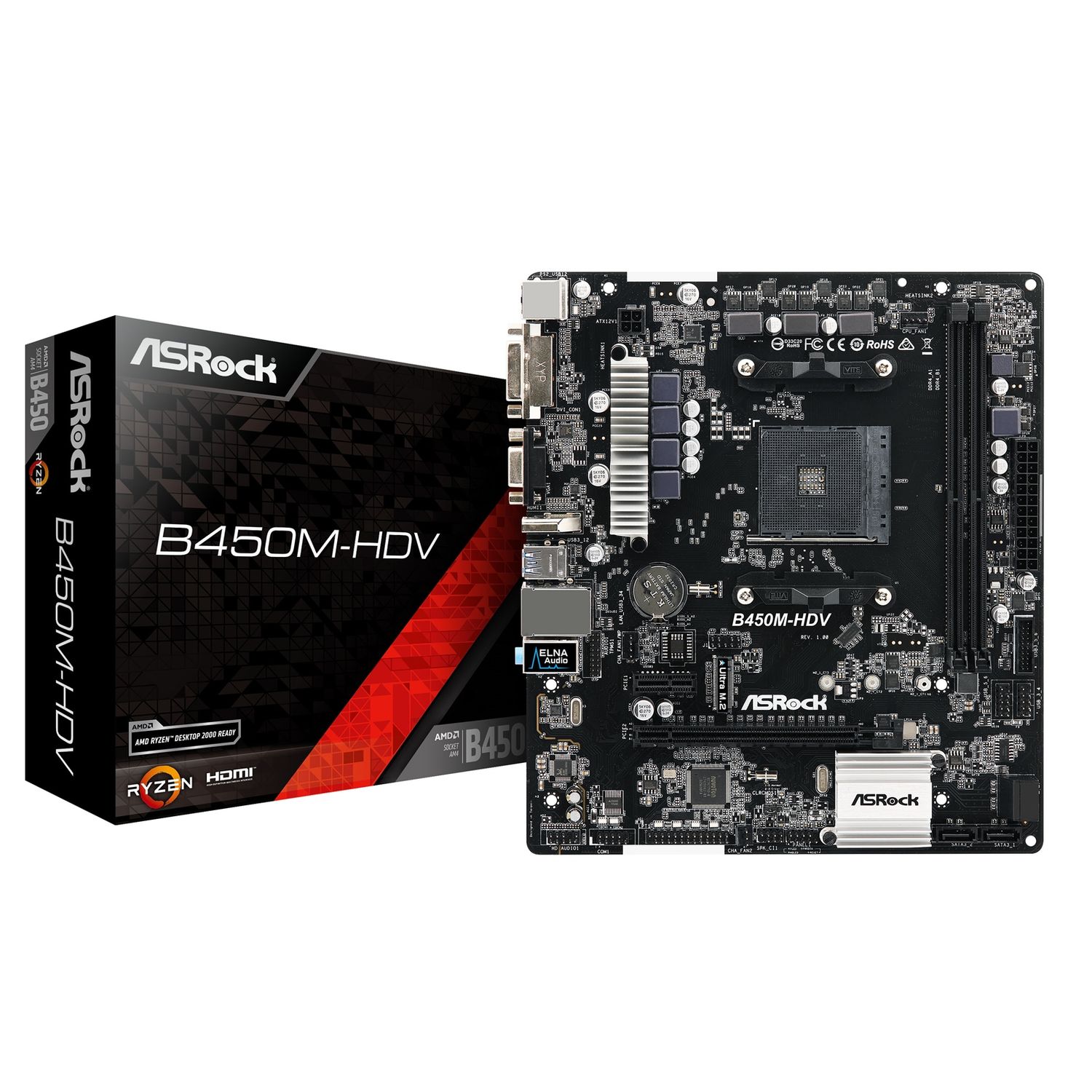

ASRock B450M-HDV Motherboard

ASRock B450M-HDV AMD Socket AM4 Micro ATX VGA/DVI-D/HDMI DDR4 USB 3.1 Motherboard

Features

ASRock Super Alloy

High Density Glass Fabric PCB

Sapphire Black PCB

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

AMD AM4 Socket

Digi Power design

Supports CPU up to 105W

Chipset

AMD Promontory B450

Memory

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory

AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory

AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory

Max. capacity of system memory: 32GB

15μ Gold Contact in DIMM Slots

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Supports "Plug and Play"

ACPI 5.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3 support

DRAM Voltage multi-adjustment

Graphics

Integrated AMD Radeon� Vega Series Graphics in Ryzen Series APU*

DirectX 12, Pixel Shader 5.0

Max. shared memory 2GB

Three graphics output options: D-Sub, DVI-D and HDMI

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with DVI-D and HDMI Ports

Supports 4K Ultra HD (UHD) playback with HDMI Port

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Supports Surge Protection

ELNA Audio Caps

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111H

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Slots

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

AMD Ryzen series CPUs (Raven Ridge)

1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)

Storage

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)

Connectors

1 x Print Port Header

1 x COM Port Header

1 x TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x Chassis Fan Connector (3-pin)

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 4 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI Port

2 x USB 2.0 Ports (Supports ESD Protection)

4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock A-Tuning

ASRock XFast LAN

UEFI

ASRock Full HD UEFI

ASRock Instant Flash

ASRock Easy RAID Installer

Software CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

Quick Installation Guide, Support CD, I/O Shield

2 x SATA Data Cables

1 x Screw for M.2 Socket

Hardware Monitor

Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans

Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans

CASE OPEN detection

Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm

OS Support

Microsoft Windows 10 64-bit
